tinyblok is the obvious next experiment after monoblok: can the patchbay run on a microcontroller and ship sensor data straight into a remote NATS cluster? In the original post, the Peter’s Porsche Rentals worked example put a Raspberry Pi behind the glovebox; an ESP32 is an order of magnitude cheaper and smaller. Coupled with a 4G mi-fi or the car’s onboard Wi-Fi, it’s a self-contained edge node that can sit on a OBD2 dongle’s worth of power and select what crosses the mobile data connection.

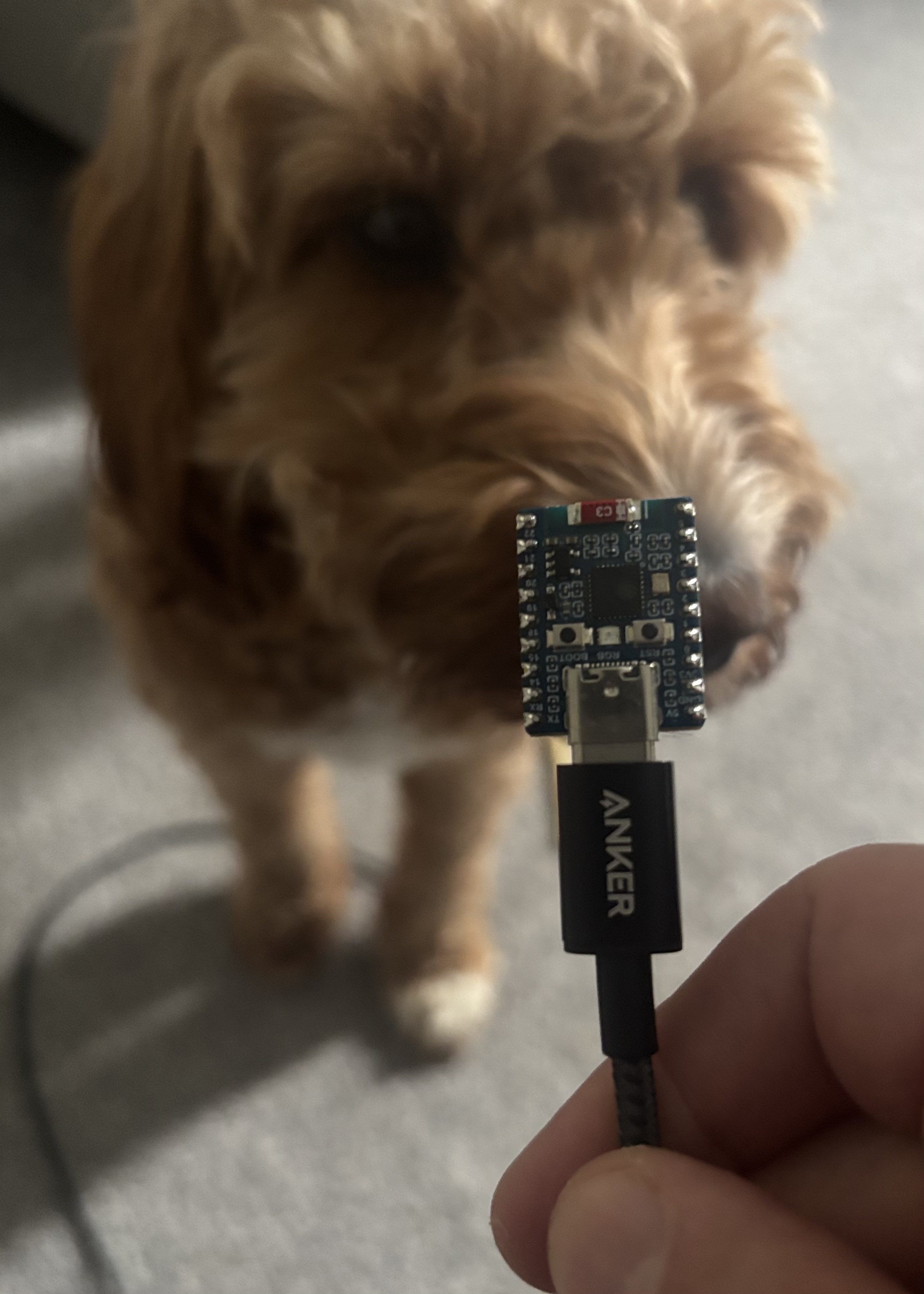

Right now it’s an ESP32-C6 that brings up Wi-Fi, opens a TCP socket to a NATS broker, sends CONNECT, and publishes some metrics off the board at defined rates. C owns everything that touches ESP-IDF (Wi-Fi, NVS, lwIP, the NATS client); Zig owns the sample-and-publish loop.
The patchbay introduces a new top-level form, pump, alongside the familiar (on ...) rules. A pump declares a source: the subject values appear on, the Zig extern fn that returns the next value, the value’s type, and how often to poll it. It is equivalent to a NATS subject - on reacts to these messages.
(pump "tinyblok.heap" :from tinyblok_free_heap :type u32 :hz 10)
(pump "tinyblok.rssi" :from tinyblok_wifi_rssi :type i32 :hz 10)
(pump "tinyblok.uptime" :from tinyblok_uptime_us :type uptime-s :hz 10)
(pump "tinyblok.temp" :from tinyblok_read_temp_c :type f32 :hz 1)
So tinyblok_wifi_rssi is called ten times a second and the result is published as an i32 on tinyblok.rssi. From there it’s the same DSL as monoblok: deadband, moving averages, rising-edge alerts.
(on "tinyblok.heap"
(-> payload-float
(deadband 1024)
(publish! (subject-append "stable"))))
(on "tinyblok.heap"
(-> payload-float
(moving-avg 10)
(round 0)
(publish! (subject-append "avg1s"))))
(on "tinyblok.heap"
(when (< payload-float 20480)
(-> payload (rising-edge) (publish! "tinyblok.alert.heap.low"))))
(on "tinyblok.rssi"
(when (not (= payload-float 0))
(-> payload-float
(deadband 2)
(publish! (subject-append "stable")))))
(on "tinyblok.rssi"
(when (not (= payload-float 0))
(-> payload-float (moving-avg :ms 5000)
(round 0)
(publish! (subject-append "avg5s")))))
(on "tinyblok.rssi"
(when (and (not (= payload-float 0)) (< payload-float -75))
(-> payload (rising-edge) (publish! "tinyblok.alert.rssi.weak"))))
(on "tinyblok.uptime"
(-> payload-float
(throttle :ms 60000)
(round 0)
(publish! (subject-append "1m"))))
(on "tinyblok.temp"
(-> payload-float
(moving-avg 30)
(round 1)
(publish! (subject-append "avg30s"))))
(on "tinyblok.temp"
(when (> payload-float 30)
(-> payload (rising-edge) (publish! "tinyblok.alert.temp.hot"))))

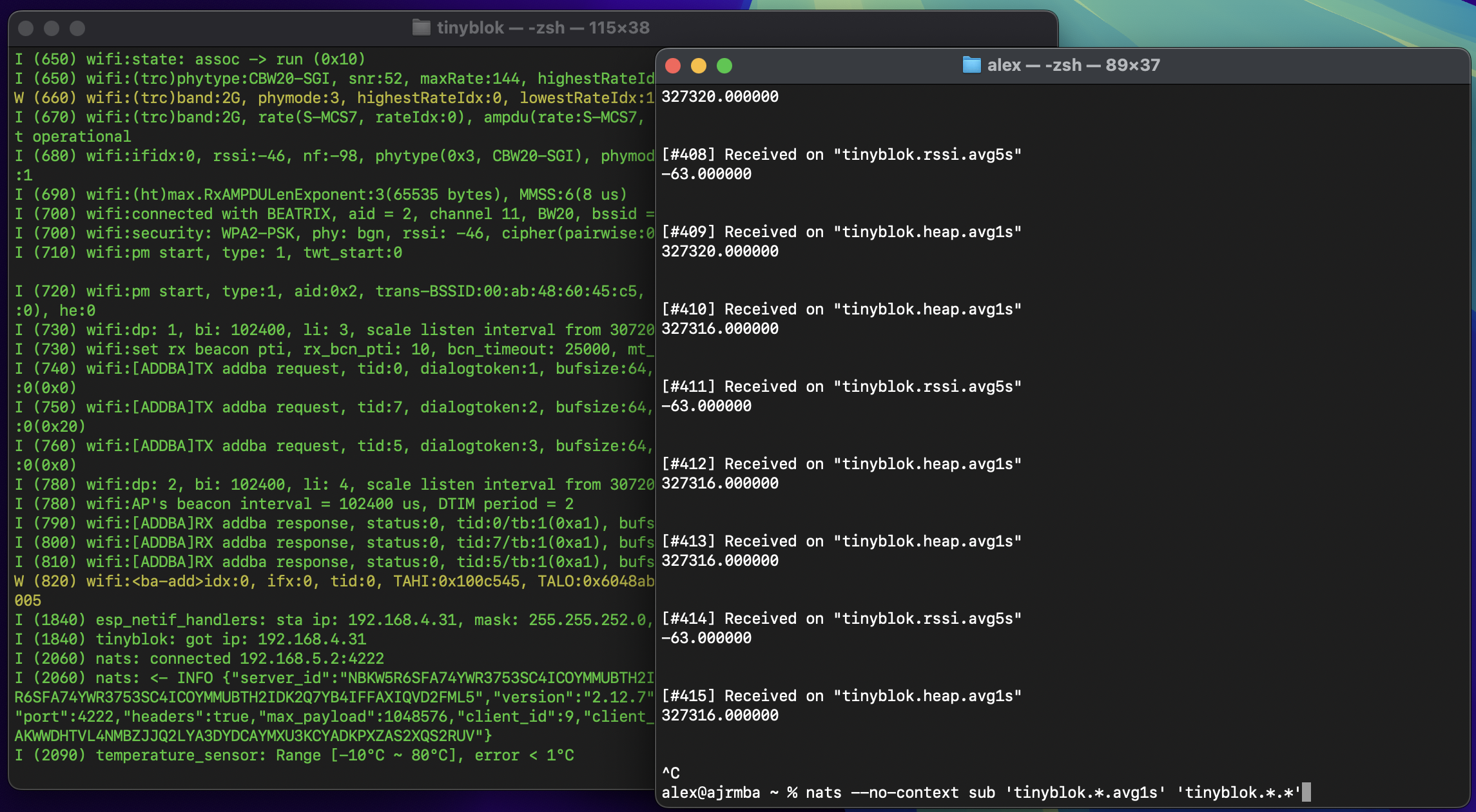

Below: device boot log on the left, conditioned stream on the right. TCP connect to the NATS broker at [1840], first publish a tick later. From the right pane you can see only the conditioned outputs reach a subscriber: deadbanded tinyblok.heap.stable, tinyblok.rssi.avg5s, tinyblok.heap.avg1s. The 10 Hz raw firehose stays on-device.
Shared kernel, two backends
Monoblok interprets the DSL, tinyblok uses codegen to keep things as light as possible.
The fork isn’t so bad as the ops themselves aren’t duplicated. deadband, moving-avg, rising-edge, throttle, and friends live in a small kernel that both monoblok and tinyblok share. Monoblok walks the parsed tree at runtime and calls the kernel; whereas tinyblok’s codegen emits straight-line Zig that calls the same kernel. The DSL has one implementation of what each op means; the two backends just differ on how they get there.
Adding one? Write the op in the shared kernel, teach the runtime walker to dispatch to it (monoblok), teach the codegen to emit a call to it (tinyblok). Two light touches, not two parallel implementations to keep in sync.
Drivers are just functions
A pump form points at a function :fn … and that’s the entire driver contract. Codegen turns it into an extern fn declaration on the Zig side and an entry in a static table the C side reads. Either language can use this, so an IDF-touching sensor would likely be a C function and a pure-compute source is an exported Zig function with callconv(.c). Adding a sensor is one function and one line of patchbay.
The C side wires that table into IDF’s native event loop: each pump gets an esp_timer armed at its :hz, the timer posts onto a private esp_event base, and a single handler dispatches back into Zig. Sample read, format, rule eval all run on the event task; the main Zig loop only drains the network.
Only polled drivers exist today. The interesting follow-on is push-style drivers (GPIO ISRs, UART RX) under a pump form with no :hz, registering their own event ids on the same base. From the patchbay’s perspective an interrupt-driven sensor looks identical to a polled one, which is the bit I want.
The TX ring and what gets dropped
publish! doesn’t write to the socket; it enqueues into a small ring (8 KB, ~256 messages at typical sizes) which the main loop drains via non-blocking send(). When the broker is slow or Wi-Fi is retransmitting, the ring drops the oldest records rather than stalling the loop. Newest-wins is the right default for telemetry: when the link comes back you want recent state, not a faithful replay of half an hour ago.
The cases where age does matter, like a lower velocity remote sensor where every reading counts, probably a needs a different approach: spooling overflow to LittleFS and flush on reconnect. That’s possibly the next addition, paired with a producer-side X-Measured-At header so a catch-up burst is distinguishable from live data downstream. Growth is still bounded by virtue of it being in a ring, so this could require some config exposing to set the ring cap. Maybe a whole 32K? :)
Challenges so far
More C than planned. ESP-IDF macros don’t translate: ESP_ERROR_CHECK, WIFI_INIT_CONFIG_DEFAULT, IPSTR/IP2STR, FreeRTOS event-group bits. @cImport has issues. I was naive - it was faster to keep the IDF surface in C and reserve Zig for the overlap with monoblok/patchbay.
The C NATS client is hand-rolled. The obvious off-the-shelf options didn’t fit. Synadia’s nats.c is a good library on a server or full client, but it pulls in pthreads, a thread pool, and TLS through linking OpenSSL, none of which is a good match in a microcontroller context where the NATS client is one of several tasks sharing 320 KB of RAM. Same story for nats.zig which assumes std.Io.Threaded and std.crypto.tls, neither of which exist here either. So, a small bespoke client it is: this is the beauty of the NATS protocol: the wire format is so simple you can implement the publish-only subset in a small amount of C and have it talk to a real broker. TLS and auth is a problem for another day (or 8), but doable.
The temperature sensor quantizes to 1 deg C. Polling faster than 1 Hz just gives you duplicates. Ironically quantization is already in place. A good early reminder that on-device, the sensor is usually the bottleneck, not the code.
It is built with make build. A Python script runs as a CMake step before the Zig static lib is built, turning patchbay.edn into main/rules.zig automatically on every make build. The Zig-flavoured alternative would be a comptime EDN parser or Zig-based executable; instead a small Python script is boring and produces a .zig file you can read. Python was the right move.
The most satisfying bit: run make build flash, and it’s running. From then on every time the board sees power it’s on Wi-Fi, talking to the broker, and publishing conditioned data in a couple of seconds.
What’s next?
Definintely doing something more interesting than forwarding temperature and Wi-Fi RSSI. Understanding real failure modes, considering request/reply inbox pattern i.e. nats req. Ask the device a question directly through NATS or monoblok. Maybe this fits scenarios where you don’t need a stream, or it is so rarely seen you miss it. Another obvious use is turning pumps off/on for remote debugging, forcing OTA updates, etc.
Try it
Code is at github.com/lexvicacom/tinyblok; expect more than a few rough edges. You’ll need espressif/esp-idf installing first. It’s a chunky download but is really nice.
If you’ve thoughts, give me a shout or find me on X or LinkedIn.
